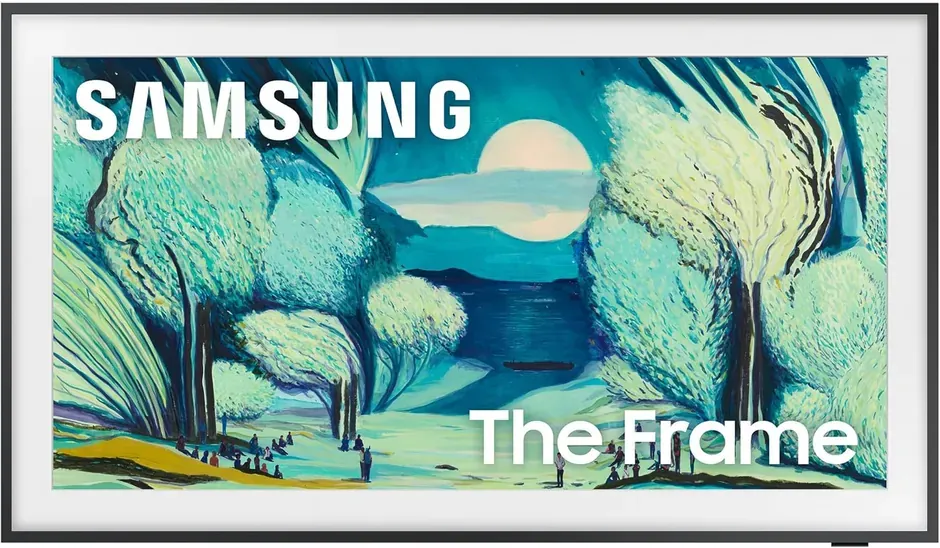

How do I mount a Samsung Frame TV on the wall by myself?
Mounting a TV has never felt so much like hanging art. Samsung’s Frame TV disguises itself as a gallery piece when not in use, but it only looks authentic when the screen sits flush against the wall with a single, nearly invisible cable disappearing into the drywall. If you’re handy and detail-oriented, you can achieve this premium look without hiring a pro.
At Express Mounting, we’ve salvaged dozens of DIY Frame installs around Atlanta: brackets a hair off level, ventilation slots pressed into insulation, One Connect cables pinched behind studs. The good news? Those slip-ups are 100 % preventable with a solid plan, the right tools, and patience.
Below you’ll find an expanded, deep-dive guide that covers:
- A full gear checklist (with Amazon links)
- Detailed measurements, mounting math, and rigging hacks
- Cable-routing diagrams, code compliance, and heat-safety tips
- Frame-specific calibration, bezel swaps, and Art Mode tricks
- Post-install cleanup & maintenance
- Troubleshooting, FAQs, and when to call a pro
Grab a fresh cup of coffee - this is the long read that makes sure your Samsung Frame TV ends up perfectly level, flush, and picture-ready.
Is it safe to mount a Samsung Frame TV solo?
✅ Yes - if you follow these five golden rules.
-
Weight & Size Awareness
The 55-inch Frame weighs ~32 lbs; the 85-inch tips 90 lbs. Anything 65 in + is doable solo only if you’re comfortable lifting half your body weight overhead. Otherwise, budget for a helper (pizza or Venmo usually works). -
Wall Composition
Drywall over wood studs is ideal. For steel studs you’ll need toggle anchors (rated 100 lbs +), and for masonry you’ll swap to Tapcon screws plus a hammer drill. Never trust plastic drywall plugs with a $3 000 TV. -
Cable Path Planning
The One Connect cable is delicate. A bad bend radius can kill signal or power. Always pre-drill a 1¼-inch pass-through at a gentle downward angle and avoid kinking around sharp metal edges. If the path dances near Romex, install a plastic grommet insert to protect insulation. -
Ventilation Checks
The Frame’s rear vents must breathe. Leave at least 5 mm between panel back and any vapor barrier. On exterior walls, slice away excess insulation batting so fiberglass isn’t pressing the vents shut. -
Heat Exposure
Screens above fireplaces look chic but cook electronics. Use an infrared thermometer on the wall after a 30-minute fire. If temps exceed 100 °F, relocate the TV or add a mantel heat shield and a recess box with active ventilation.
Complete tool & material checklist (with pro-installer extras)
Category | Item | Why it matters |
---|---|---|
Stud detection | Electronic + magnetic stud finder combo | Dual confirmation prevents drilling phantom “ghost” studs. |
Pilot drilling | Power drill + driver bits | Clean pilot holes stop stud splitting; driver bits seat lag screws. |
Flexible drill extension | Sneak past obstructing ductwork. | |
Mounting hardware | Samsung No Gap Wall Mount | OEM bracket means no guessing on offsets. |
Lag bolts & washers (3 in, ¼-in) | Rated 120 lb + shear - better than the screws in the box. | |
Layout & leveling | 24-in digital level | Audible cue keeps hands free. |
Tape measure, blue painter’s tape, fine pencil | Precise marks, no torn paint. | |
Cable concealment | UL-rated in-wall power relocation kit | Meets NEC code for Class II circuits. |
Slim Fit One Connect cable (15 m) | Park the console in a closet or media rack. | |
Low-voltage cable grommets | Smooth edges; white flange hides drywall cuts. | |
Surface protection | Drop cloth, micro-fiber cloths, cardboard | Door-frame dings and dusty screens ruin the vibe. |
Aesthetic extras | Custom Samsung Frame bezels | Snap on teak, mahogany, or modern white. |
Recessed media box | Hides streaming sticks and soundbar power bricks. |
Budget hack: Borrow tools free from Home Depot’s Tool Rental Center - stud finders and digital levels cost $0 for 4 hours.
Precise planning: height, template, stud math & wire-chase diagrams
1. Eye-level rule of thumb
Seating eye-level averages 42–44 in. Measure floor-to-eye, subtract half the TV height, and that’s your mount’s vertical midpoint. For Frame TVs above fireplaces, split the difference: minimize neck strain and keep the art-gallery illusion.
2. Samsung’s paper template - decode the dots
Rip the template at the fold lines so it sits flush on the wall. Tiny black squares = lag-bolt targets. Punch thumbtacks through to mark holes and peel away without smearing graphite.
3. Stud spacing reality check
New Atlanta homes: 16 in OC. 1990s suburbs: 24 in OC. Late-40s bungalows downtown? Irregular balloon framing. Run the stud finder vertically from floor trim to 6 ft - nails often drift, so constant depth confirms you’re on wood.
4. Wire-chase diagram
- Top hole: 1¼-in behind mount center.
- Bottom hole: 1¼-in 10–12 in below, centered between studs.
- Fish tape path: gravity-assisted drop or magnet fish from bottom-up if insulation packs tight.
- Bend radius: Keep loops > 2 in diameter to protect fiber strands inside the One Connect cable.
Step-by-step installation (deep dive)
- Room prep – Roll out a drop cloth, flip the breaker (safety plus keeps drill dust out of outlets), and vacuum baseboards so the template tape sticks.
- Stud mapping grid – Mark three vertical stud lines wider than the TV width. Use painter’s tape, then pencil guidelines.
- Pilot holes – Drill 3⁄16-in pilots exactly perpendicular to the wall - angled holes skew the bracket. If resistance suddenly drops, you punched through the stud’s edge. Shift ½ in and try again.
- Install power kit – Cut the top receptacle port first. Hold the rough-in plate with one screw while you check stud clearance, then carve final shape with a drywall saw.
- Drop low-voltage One Connect line – Tape the cable head to a chain pull, drop down, and guide gently. If it snags, blow expanding foam after the cable’s through - never before.
- Lag the No Gap bracket – Drive lag bolts until the washer dimples the bracket slot. Stop. Over-torqued bolts crush stud fibers and weaken pull-out strength.
- Mount prep – Lay the Frame face-down on a padded workbench. Peel plastic around vent slots (but leave the screen film until final clean).
- Connect cables – Power and One Connect only; skip HDMI and Ethernet for now to keep slack manageable. Secure coils with Velcro.
- Solo lift technique – Place a 14-in moving box against the wall under the bracket. Rest TV bottom on the box, tilt top hooks onto bracket, step back, then slide the box out.
- Safety screws – Tighten the two Torx screws under the top hooks. They stop an accidental upward bump from knocking the set loose.
- Micro-adjust – Spin the right-side wheel to fine-tune level, left wheel for distance from wall. Use a laser cross-line for perfection.
- Bezel snap-on – Start at the top bezel, then sides, finishing at the bottom. A satisfying “clack” means magnets seated correctly.
- Cable dressing – Behind the console, loop excess One Connect cable in 10-in coils - never smaller. Bundle HDMI leads separately to prevent crosstalk.
- Power-up & firmware check – Before pushing the console back, run Settings → Support → Software Update. A 5-minute delay now prevents a 30-minute teardown later.
Frame-specific finishing touches
Art Mode brightness & color-tone calibration
The Frame relies on an ambient sensor left of the Samsung logo. If a pendant light casts glare, Art Mode over-brightens. Offset with Art Mode → Brightness → −2 and Color Tone → Warm 2 for gallery-grade neutrality.
Motion sensor efficiency tweaks
Samsung’s optional motion sensor shuts Art Mode off after 2 minutes idle, but default sensitivity is low. Inside SmartThings, raise the sensor level to “High” so quick walk-bys still count.
Soundbar alignment & floating shelf trick
If adding a slim soundbar, mount it 2 in below the Frame. Too tight and bass buzzes the bezel; too low and it breaks the artwork illusion. Use a piggy-back bracket or hide the bar on a floating shelf painted wall-color - no extra holes, cables drop through shelf grommets.
Post-installation cleanup & maintenance
- Dust the bezel weekly with a microfiber cloth - static builds inside Art Mode’s black borders.
- Firmware every quarter – New updates add Mat color palettes and Art Store categories.
- Vacuum console vents – The One Connect box lives on your media rack; clear dust to stop thermal throttling.
- Re-tighten lag bolts annually – Wood studs dry out; a ⅛-turn keeps pull-out strength.
- Seasonal thermostat check – Atlanta summers push attic temps > 120 °F. If the wall behind your TV backs to an uninsulated attic, add reflective foam board behind drywall to cut heat soak.
Common Samsung Frame pitfalls (expanded)
Mistake | Result | Fix |
---|---|---|
Kinking One Connect cable behind stud | Random black-outs or “No Signal” | Use 2 in hole saw + grommet for smooth bend. |
Skipping level check after tightening | Crooked “painting” | Loosen micro-adjust wheels; realign. |
Over-tightening bezel magnets | Bezel won’t seat flush | Loosen bracket ⅛-turn to relieve pressure. |
Blocking rear vents | Overheating in Art Mode | Pull TV, add 3 mm neoprene spacers. |
Mixing power & low-voltage in same raceway | NEC code violation | Use separate Class II box or UL in-wall kit with divider. |
Forgetting to label HDMI leads | 4 K60 not detected later | Color-code tips or use cable flags before threading. |
Extended FAQs
Q: Can I shorten or splice the One Connect cable?
A: No. It contains proprietary fiber strands - cutting voids warranty and ruins bandwidth. Buy the 5 m or 15 m OEM length.
Q: What size lag bolts are safest in wood studs?
A: ¼-in diameter, 3 in long, coarse thread. Torque to 30 ft-lb; hand-tight plus a quarter-turn.
Q: Do I need in-wall speaker wire rated for CL2 or CL3?
A: If the wire runs inside a wall cavity, yes. Look for UL-listed CL3/FT4 on the jacket.
Q: My console is 20 ft away - will the remote still work?
A: The Frame’s remote is Bluetooth LE; line-of-sight unnecessary. Just keep the console within the same room or an adjacent closet.
Q: Can I recess the Frame INTO the drywall?
A: Technically yes with a 2×6 stud wall, but you must build a ventilated inset box. Many insurance carriers reject claims if passive cooling is inadequate - confirm with your policy first.
Q: How do I hide gaming consoles or Apple TV?
A: Install a 14×14 in recessed media box behind the TV or snake an HDMI fiber optic to a cabinet. Test latency before final drywall patching - gamers notice > 10 ms added delay.
When to hand it off to Express Mounting
- 75- or 85-inch Frame models
- Brick, stone, or fireplace installs
- Multi-TV gallery walls or commercial lobby clusters
- In-wall conduit runs exceeding 15 ft or requiring fire-block drilling
- Insurance-backed workmanship guarantee
Why Atlanta trusts Express Mounting
We’ve installed 1 900 + Samsung Frame TVs since 2019, delivering:
- ±0.1° bracket accuracy with laser leveling
- Invisible cable routing & NEC-compliant power kits
- Fireplace heat shields & mantel modifications
- Same-day service & two-hour arrival windows
